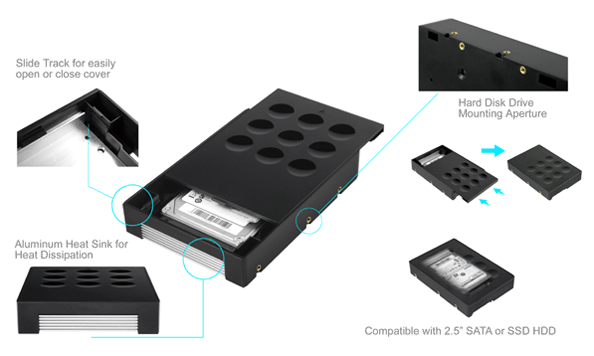

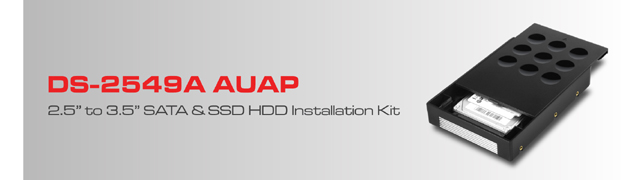

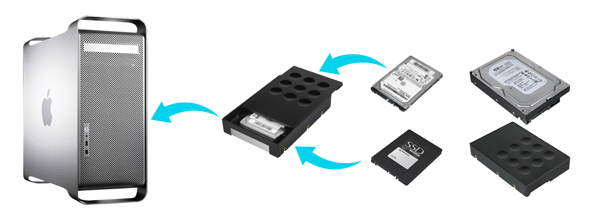

This installation kit enables any 2.5" hard drive or SDD ( Solid State Drive ) to be used like a standard 3.5" hard drive in a desktop system. The sturdy mounting bracket with metal heat sink allows any hard drive or SSD to fit perfectly into any standard or 3.5" drive bay.


  Feature


* Fully Compatible with any 2.5" hard drive or SSD
* SATA II Transfer rate up to 3Gb/s

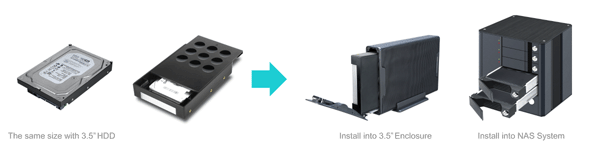

* Fit any systems with standard 3.5" drive bay
* Aluminum Heat Sink for heat dissipation
* Compatible with most 3.5" HDD enclosures & Docking Station



  Specifications

Model No. 2549A .0 + eSATA
Interface SATA to SATA or SSD HDD
Supports 2.5” SATA I/II Drives
Data Transfer Rate SATAII: 3Gbps
Support Plug & Play Yes
Support Hard Drive Capacity UP TO 500GB
Material ABS with Aluminum Heat Sink
System Requirements Windows 98SE/NT/2000/2003/XP/Vista,Mac, Linux
Dimensions (mm) 146 x 100 x 25 (mm)


  Package contents


  CD   Manual

  User View -1


User View -2


User View -3
