    » PRODUCTS                                                                            World-leading mobile data, multimedia products overall solution provider

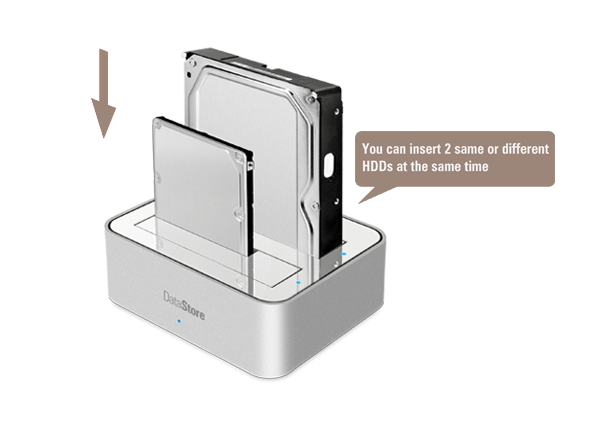

DS-3527VI series is an intelligent solution for your bare drives. It supports both 2.5-inch and 3.5-inch SATA Hard Disk Drives. DS-3527VI series makes it convenient to install your HDDs and it supports SuperSpeed USB 3.0 for your extreme Data transfer and backup. It makes file exchange even easier than you can imagine, you can just move data between your bare drives with DS-3527VI series.




  Feature
  Internal Hard Drives
Number of Drives: 1
Drive Interface: RAID+USB to SATA HDD

Interface
Standard Compliance: USB 3.0
Connector Type: USB Series B * 1 port

Support File Format
EXT2 / EXT3
FAT32
NTFS

Support Hard Drive
Toshiba, Seagate, Maxtor, Western Digital, Hitachi, Samsung.

Support Hard Drive Capacity
SATA I/II UP TO 4TB (Raid0 Mode)

OS Supported (for Client PC)
Windows 2000/Mac9.1/Linux for USB2.0
indows XP/Vista/7 for USB 3.0

Features
Aluminum Alloy Casing provides excellent cooling

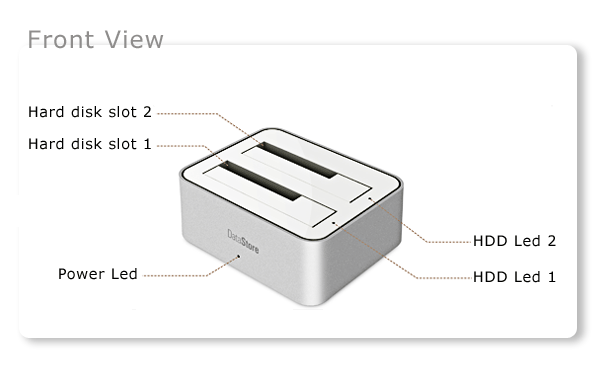

Blue and Red LED illuminated Panel indicates power and hard disk drive access activity
USB3.0 Transfer rate up to amazing 5Gbps
Fully compatible with 2.5” or 3.5" SATA I/II Hard Disk Drives
Truly Plug and Play
Support Single, Fast (RAID0), Safe (Raid1) Options
High performance data movement
Support Rebuild offline and auto failover
Drive racing in SAFE mode

Others
Dimensions (W×H×D mm):
External Power Adapter: 12V


Specifications
* Model No. : DS-T3527(VI)DUAA
* Interface : USB 3.0 to 2.5” or 3.5” SATA HDD Docking Station with RAID
* Supports : 2.5” or 3.5” SATA I/II Drives
* Data Transfer Rate : 5Gb/s
* Support Plug & Play : Yes
* Material : Aluminum Alloy
* USB Cable : USB 3.0 Cable
* Operating Temperature : 0o C to 50o C
* Operating Humidity : 5% to 95% non-condensing
* Power : Adapter 12V
* System Requirements : Windows 2000/Mac9.1/Linux for USB 2.0
* System Requirements : Windows XP/Vista/7 for USB 3.0
* Instruct Light : Blue & Red LED
* Support Hard Drive Capacity : SATAI/II UP TO 4TB (RAID0 Mode)
* Dimensions (mm) : 136x111x54.5 (mm)
* Warranty : Standard one-year factory warranty

Package Contents
  o
Manual CD USB Cable Power Adapter


Color:



  TOP   BACK
