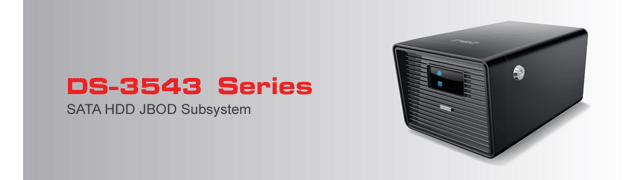

3543 Series is a Dual Bay 3.5” SATA HDD External Storage which the functions can be RAID and JBOD Subsystem. With the secure front door with key provides a safety shelter for both hard disk drives. Further, the F.I.T. (Fast Installation Technology) gives users the fastest way in the world to change and switch different HDD and OS. More importantly, this product is fully loaded with aluminum; it is the best material for enclosure since it dissipates heat so professionally.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Feature |
|
|
* F.I.T. (Fast Installation Technology)
* Easy Installation Design
* Screw-less Design
* Tool-less Design
* Solid Aluminum Casing
* Front Door Security
* LED or LCD Display
* Spot Light |
|
|
Specifications |
|
|
* Support 3.5" SATA I/II Hard Disk Drives up to 2TB (1TB x 2)
* Hardware RAID 0, 1 *for RAID model only*
* OTB (One Touch Backup) Function *for JBOD model only*
* Universal Power Adapter: 5V/2A, 12V/2A, 100-240V
* Quiet and powerful 6 x 6cm Fan
* Dimension (W x D x H): 133 x 215 x 110 (mm)
* Windows ME/98/NT/2000/2003/XP/Vista, MAC, Linux |
|
|
Package Contents |
|
|
|
|
|
DS-3536 CD Manual Power Adapter USB Cable Key |
|
|
What is JBOD(Spanning)? |
|
|
|
|
|
JBOD makes 2 Hard Disk Drives appear to be a single one.
It accomplishes that by combining 2 Hard Disk Drives into
1 larger logical one. |
|
|
|
• Actual Hard Disk Drive’s size will be vary depending on Hard Disk Drive Manufacturer. |
|
|
|
|
|
|
|
|
|
|

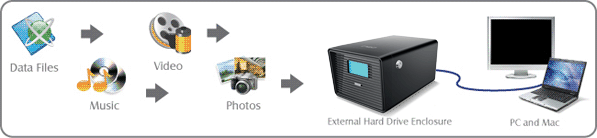

Application |
|
|
|
|
