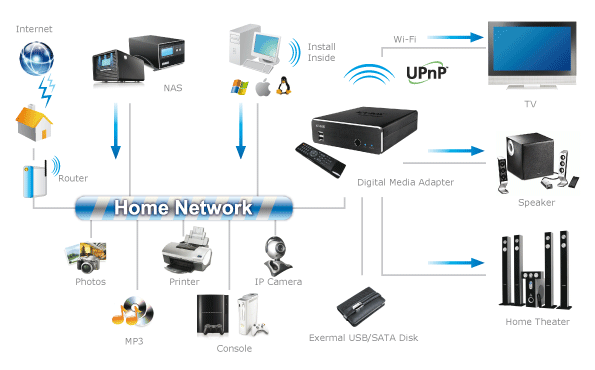

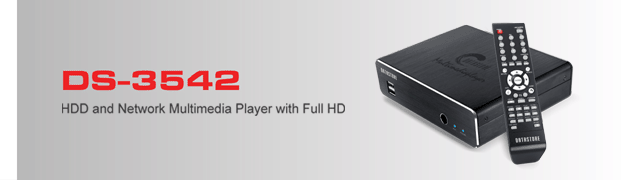

3542MNAD can support almost all video formats which you can download from the Internet even the newest MKV format also can playback under 1920x1080P smoothly. You can display video from internal hard disk drive or through LAN to display media from other computers via SAMBA, UPnP or myiHome. If you connect 3542MNAD to your HDTV via HDMI interface, you will find out what a incredible video and sound quality. Besides, the web server provides online TV show for you to wath and the CSS websites provides new information for you to review.

Chipset Solution
* Sigma DesignsR EM8635, 300 MHz

LAN Interface
* Data Transfer Rates: 10/100 Mbps
* Connector Type: RJ-45 * 1port

Internal Hard Drives
* Number of Drives: 1
* Drive Interface: USB to SATA HDD

Interface
* Standard Compliance: USB 2.0
* Connector Type: HDMI x 1 port / USB Host x 2 port
* Device: works with USB devices, likeUSB HUB, USB Enclosure, USB Keyboard, USB DVD-ROM and USB Pen Drive.

File Format
* EXT3 (Internal HDD)
* FAT32 / NTFS (Enclosure)

Language
* English, Traditional Chinese(Other language available with OEM order)

System Tools
* System Firmware upgrades
* Reset system setting

Protocol Support
* Networking: TCP/IP
* File Sharing: SAMBA / BT / FTP / NFS

OS Supported (for Client PC)
* Microsoft Windows 98SE/NT/2000/XP/2003/Vista
* Linux Redhat/Fedora/SUSE

Features
* Aluminum Alloy Casing
* USB2.0 Transfer rate up to 480Mb/s
* Fully compatible with 3.5 SATA I/II hard disk
* Truly Plug and Play
* Support H264, MKV, ISO, TP, TS playback
* Support 99% multimedia files playback
* Support Full HD 1920x1080P
* Support HDMI 1.3, AC3 and Dolby Surround 5.1

Support Hard Drive Capacity
* UP TO 1.5TB

Support Hard Drive
* Toshiba, Seagate, Maxtor, Western Digital, Hitachi, Samsung.

Others
* Dimensions (D×W×H mm): 420 x 220 x45
* External Power Adapter: 12V

S-Video

RGB

Codec Support
* Video Format:
   1. MPEG-1 VCD format (1.15Mbps CBR)
       [.mpg, .mpe, .mpeg, .dat, .m1v, .iso]
   2. SD and HD MPEG2 up to 20 and 40 Mbps
       [.mpg, .mpe, .mpeg, .m2v, .vob, .vro, .iso]
   3. SD and HD MPEG-4 (OpenDivx, Xvid, MP4)
       [.avi, .divx, .mov, .mp4.H264, .iso]
   4. SD and HD WMV9 [.asf, .wmv, .mkv, .iso]
   5. AVI audio codec: MP3, AC3, PCM, WMA, Ogg
   6. RM , RMVB (with myiHome software decoding)

* Text Base Subtitle Format
   1. Subtitle (MicroDVD, SubRip, Sub Station Alpha, Sami)
        [.sub, .srt, .saa, .smi]

* Audio Format
   1. MPEG-1 Layer1 (MP1) [.mp1, .mpa]
   2. MPEG-1 Layer2 (MP2) [.mp2]
   3. MPEG-1 Layer3 (MP3) [.mp3]
   4. Ogg Vorbis (OGG) [.Ogg]
   5. AC3 5.1 (AC3) [.ac3]
   6. Microsoft PCM Wave (WAV) [.wav]
   7. Advanced Audi Coding (AAC, ADIF, ADTS) [.aac]
   8. Microsoft Windows Media Audio Professional (WMA Pro) [.asf]
   9. Free Lossless Audio Codec (FLAC) [.flac]

USB

* Photo Format
1. JPEG
2. PNG, GIF, TIFF, BMP

USB Wireless Dongle (Optional)
* SSID
1. Maximum 64 characters

* WEP / WPA Key
1. 64 bit, 128 bit

* Protocol
IEEE802.11N

Hardware Specification
* CPU/System Board
Sigma DesignsR EM8635, 300 MHz 32-bit RISC, 256 MB DDR SDRAM Video Buffer

* Output Interfaces
Video: Composite Video, S-Video, Component Video, HDMI 1.3 1080 SD
Audio: Stereo, SPDIF Digital audio output on both Coaxial and Optical

* Network Interface
Ethernet interface, 10-baseT/100-base

LAN

Specifications

Model No.	3542MNAD
Interface	USB 2.0 for SATA HDD
Support	3.5” SATA I/II Hard Disk Drive
Data Transfer Rate	USB 2.0: 480 Mbps Ethernet: 10/100 Mbps
Support Plug & Play	Yes
Material	Aluminum Alloy
Support File Format	MPG, MPEG, SVCD, DAT, ISO, MP4, DIVX, AVI, WMV, DAT, VOB, MOV, TP, TS, H264, MKV, XVID, RM/RMVB(/w software decoding)
USB Cable	USB2.0 Cable
Operating Temperature	0 o C to 50 o C
Operating Humidity	5% to 95% non-condensing
Power	Adapter 12V, 100-240V
Instruct Light	Green and Red LED
Support Hard Drive Capacity	UP TO 1.5TB
Dimensions (D x W x H)	420 x 220 x 45 (mm)
Warranty	Standard one-year factory warranty

Package Contents

USB Cable

User Manual

Power Adapter

Remote Controller

RJ-45 Cable

S-Video Cable

AV Cable

RGB Cable

Double A Battery

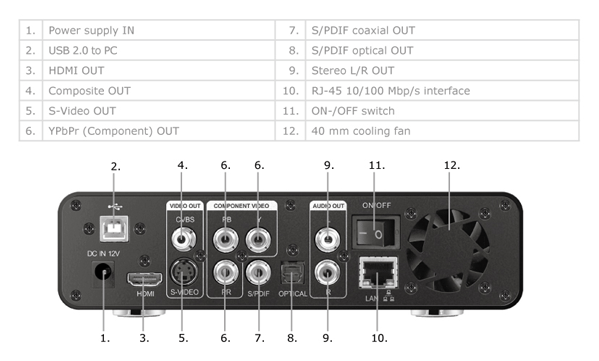

Back View

FTP Server
It simplifies the data sharing around the world. Users can manage the access authority of the FTP server and share their files with friends or customers easily in just a few steps.

NAS SAMBA Server
Samba is a strong network service for file and print sharing that works on the majority of operating systems available today. When well implemented by the administrator, it's faster and more secure than the native file sharing services available on Microsoft Windows machines.

Usage Instructions:

NAS (NFS Server)
This server allows a remote PC to access the locally installed HDD on the 3542MNAD as a NFS share.

BiTorrent Download
BitTorrent client is used for download to the internal HDD.

myiHome UPnP AV Server
A standard UPnP AV server for streaming media directly from 3542MNAD’s HDD.
