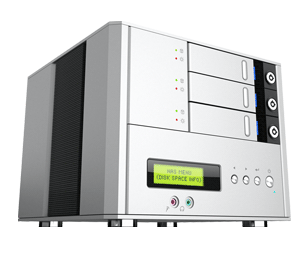

Multi-Bay NAS Series is a 2.5 inch or 3.5 inch SATA HDD 3 Bay Network Attached Storage. Supported by Intel Atom processor for high performance data access abilities with advanced RAID protection by RAID 0/ 1/ 5 / 5+ Hot Spare/ 6/ 6+ Hot Spare, the expandable capacity of RAID 1/5/6 to supply maximum flexibility for users to manage disk volumes. The powerful NAS also provides iSCSI Target functions for powerful business users. The iSCSI feature is used to facilitate data transfers over intranets and to manage storage over long distances. The users can setup partial volume for iSCSI Target to access and manage by iSCSI initiator. The Multi-Bay NAS supports file sharing across multi platforms and provides rich functions for business purposes such as SAMBA Server, FTP Server, File Server, DFS Server, Printer Server, Web Server and Windows Active Directory.
|
|
| |
 |
|
| |
|
| |
 |
Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market. |
| |
|
 |
Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market. |
| |
|
 |
Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market. |
| |
|
 |
Motion Detection
It provides motion detection which is a useful feature that allows you to program your network camera to begin recording, and perform other functions such as sending automated email alerts, when movement is detected within a scene. |
| |
|
 |
MJPEG/ MPEG4
It is able to captures high-quality video and enables simultaneous deliver of dual streams in mpeg-4 and MJPEG. This allows for different video resolution and quality depending on what type of device you choose to monitor the camera from. |
| |
|
 |
LCD Indicator
Through the LCD indicator, users can check or configure the IP settings, Hard Drive capacity, System temperature, Local time, and Fan's speed. |
| |
|
 |
Time Stamp
Time stamp provides a more accurate picture or video of what is actually being recorded. |
| |
|
 |
Linux Embeded
It is configured as Linux-embedded system which provides Ultra stable, reliable and high performance recording surveillance system |
| |
|
 |
RAID 0/ 1 Supported
Enhanced RAID 0/ 1configurations to provide large storage capacity as well as secure data protection. |
| |
|
|
|
| |
Feature |
|
| |
* IP CAM Protocol: RTSP / HTTP
* Support IP CAM : 3Bay:32 / 5Bay:64
* Support 3GPP / Mobile Phone (Remote Monitor)
* Support Remote Monitor (Real Time)
* Support Motion Detection
* Support PTZ
* Support Quickly Video Event Search
* Real Time Multi IP CAM Display
* Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording
* Support Web-Based real time monitor and access recording file via FTP or LAN
* IP Cam Search Wizard
* Support Hard Disk Drive Hot Swap
* Support RAID 0/1/5 /6 with hot spare |
|
| |
Applications
|
|
| |
* Windows AD
* Surveillance Station (IP Camera)
|
|
| |
Specifications
|
|
| |
* Intel Atom 330: 1.6GHz / Dual Core
* 2GB DDR2 Memory
* Disk On Module: SATA DOM 512MB
* Support 3.5" SATA I/II Hard Disk Drives x3
* 10/100/1000 Gigabit Connection
* Disk Management: RAID 0/1/5
* Support Jumbo Frame: 9000
* USB 2.0 x 4 on back panel
* Hard Drive Power Controller
* Alarm Buzzer
* Auto Wake On
* Temperature Detection with Report
* Quiet and powerful 8 x 8 cm Fan
* Dimension (W x D x H): 3Bay: 205 x 244 x 205 (mm)
* Windows 98SE/NT/2000/2003/XP/Vista/7, MAC, Linux
* Support IP Cameras list :Zonet:
ZVC 7630/ZVC 7630W/ZVC 7610/ZVC 7610W
AVTECH: AVI201N/AVI203N
Zavio: F 312A /D510E/F731
|
|
| |
| |
|
|
| |
If you want to know detailed product information, please click the download button
