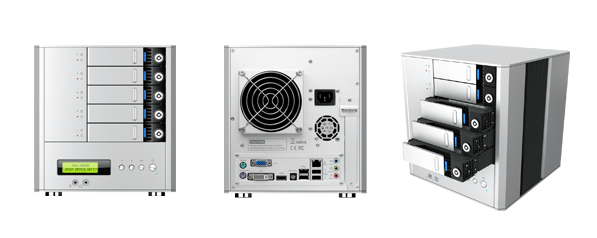

 3560 series is a 5 bay 3.5 inch SATA hard disk drive NAS. It is based on Intel Atom 330 (1.6GHz / Dual Core) to support high performance data access ability with advanced RAID protection by RAID 0/1/5 /5+ Hot Spare /6/6+ Hot Spare and the expandable capacity of RAID 1/5/6 to supply maximum flexibility for users to manage disk volumes.
The powerful 5 bay NAS also provides iSCSI Target function for powerful or business user. The iSCSI is used to facilitate data transfers over intranets and to manage storage over long distances. The user can setup part of volume for iSCSI Target to access and manage by iSCSI initiator.

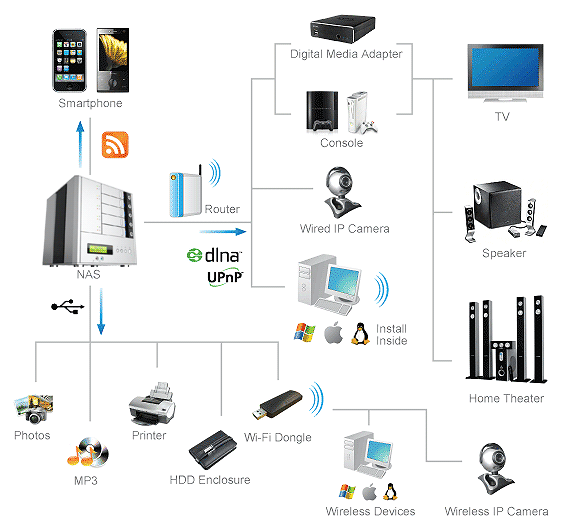

The 3560 supports file sharing across multi platforms. 3560 provides rich function for business purpose such as samba server, ftp server, file server, DFS server, printer server, web server, and Windows Active Directory.
|
|
| |
 |
| |
 |
Outstanding Read/Write Performance

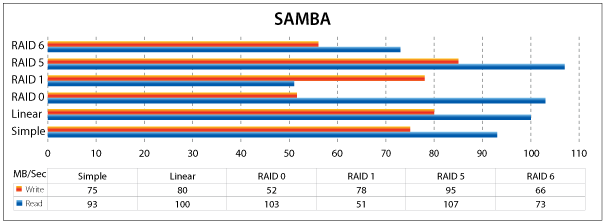

SAMBA Access
PC:
Intel (R) Core i3 CPU 530 @2.93GHz RAM 4G
OS: Windows 7 64bit
|

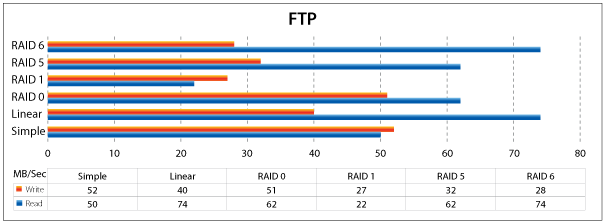

FTP Access
PC:
Intel (R) Pentium(R) Dual CPU E2180 2G , RAM 2G
OS: Microsoft Windows XP Professional
|

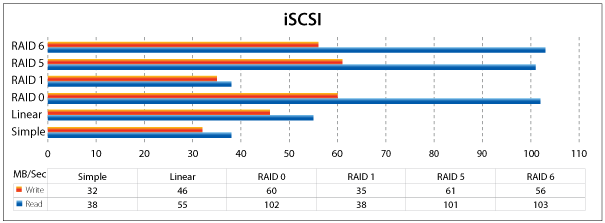

iSCSI
PC:
Intel(R) Core i3 CPU 530 @2.93GHz RAM 4G
OS: Windows 7 64bit
|
The Information on LCD
Mode
|
Description |
NET DEVICE INFO
|
Shows IP address and Subnet Mask |
DISK SPACE INFO
|
Shows Volume and Free Size |
| SYSTEM STATUS |
Shows System Temperature |
| DATA AND TIME |
Shows Date and Time |
| SYSTEM WARNING |
Shows System Status Message |
Disk Configuration and required HDD Number
Disk Configuration
|
Require HDD Number |
Simple
|
Single |
Linear, RAID 0, RAID 1
|
Two and above |
| Linear, RAID 0, RAID 5 |
Three and above |
| Linear, RAID 0 ,Raid 5, RAID 6, RAID 5 + hot spare |
Four and above |
| Linear, RAID 0 ,Raid 5, RAID 6, RAID 6 + hot spare |
Five and above |
| RAID 0 ( Requires a minimum of 2 hdds to implement)
|

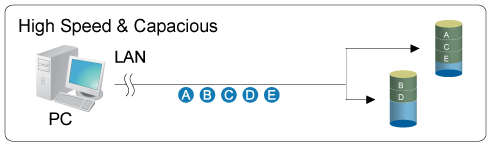

Under this mode, the capacity of the hard disk drive is sum of two hard disk drives. For example, one of the hard disk drive is 2TB and the other one is 1.5TB, after create a single large virtual partition, the capacity under RAID 0 mode is around 3TB. It offers no redundancy, and therefore decreases overall reliability: a single disk failure will knock out the whole thing.
 |
| RAID 1
( Requires a minimum of 2 hdds to implement )
|

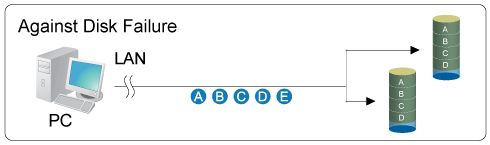

1.RAID 1 is also referred to as mirroring. Two partitions, all of the same size, each store an exact copy of all data, disk-block by disk-block. Mirroring gives strong protection against disk failure: if one disk fails, there is another with an exact copy of the same data.
2.Please install two hard disk drives with same model and size. If the sizes of the hard disk drives are different, the system will choose the smaller size to build raid system. For example, one of the hard disk drive is 2TB, and the other one is 1.5TB, after build RAID 1 system, the maximum size of the hard disk drive is around 1.5TB.
 |

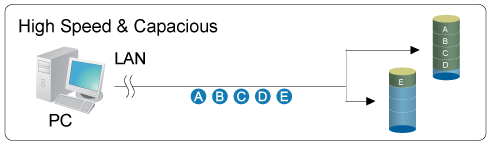

| Linear
( Requires a minimum of 2 hdds to implement ) |
RAID-Linear is a simple concatenation of partitions to create a larger virtual partition. It is handy if you have a number small drives, and wish to create a single, large partition. This concatenation offers no redundancy, and in fact decreases the overall reliability: if any one disk fails, the combined partition will fail. When the first hard disk drive is full, the data is just start to write into the second hard disk drive.
 |
RAID 5
( Requires a minimum of 3 hdds to implement ) |

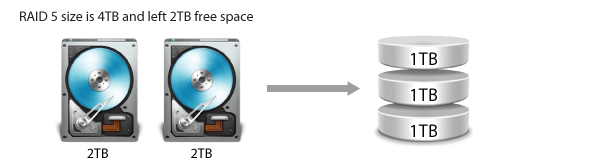

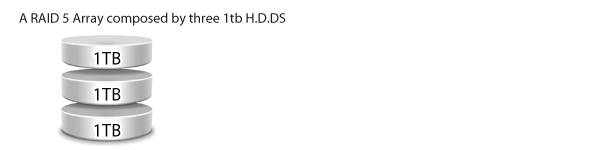

RAID 5 stripes both data and parity information across three or more drives. The capacity of a RAID 5 array is the size of the smallest drive multiplied by one less than the number of drives in the array which can tolerate loss of one drive. |
RAID 6
( Requires a minimum of 4 hdds to implement ) |
RAID 6 stripes blocks of data and parity across an array of drives; expect that it calculates two sets of parity information for each parcel of data. The capacity of a RAID 6 array is the size of the smallest drive multiplied by one less than the number of drives in the array. RAID 6 can protect mission-critical data from two concurrent disk drive failures |

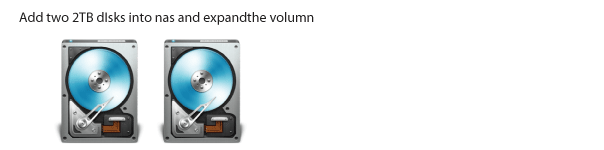

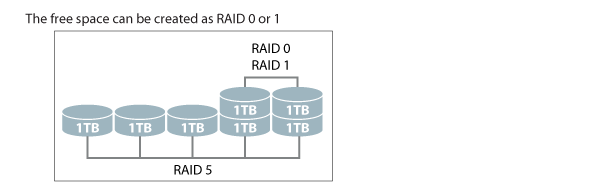

Upgrade Disk Configuration
Disk Configuration
|
Upgrade
|
Simple
|
RAID 1 |
RAID 1
|
RAID 5 |
| RAID 5 |
RAID 6 |
|
| |
 |
Complete recording features
:Schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording |
| |
|
|
SMS
User may setup SMS service if NAS occurs any problems, the system will sent notify message to the mobile phone. |
| |
|
 |
RSS Server
Really Simple Syndication to browse files on your smartphone; for example, a smartphone can playback MP3 via this service. |
| |
|
 |
Apache Server
Easy build your WWW website based on Linux platform, more stable, more flexible. |
| |
|
 |
Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market. |
| |
|
 |
Motion Detection
It provides motion detection which is a useful feature that allows you to program your network camera to begin recording, and perform other functions such as sending automated email alerts, when movement is detected within a scene. |
| |
|
 |
MJPEG/ MPEG4
It is able to captures high-quality video and enables simultaneous deliver of dual streams in mpeg-4 and MJPEG. This allows for different video resolution and quality depending on what type of device you choose to monitor the camera from. |
| |
|
 |
LCD Indicator
Through the LCD indicator, users can check or configure the IP settings, Hard Drive capacity, System temperature, Local time, and Fan's speed. |
| |
|
 |
Time Stamp
Time stamp provides a more accurate picture or video of what is actually being recorded. |
| |
|
 |
Linux Embeded
It is configured as Linux-embedded system which provides Ultra stable, reliable and high performance recording surveillance system |
| |
|
 |
RAID 0/ 1 Supported
Enhanced RAID 0/ 1configurations to provide large storage capacity as well as secure data protection. |
| |
|
 |
Support Windows ADS
Windows ADS (Active Directory Service) saves not only server manager's time and effort in creating duplicated groups and accounts, but also lowers the maintenance cost by centralized management. |
| |
|
 |
File Server
It makes users to create their own File Server easily. It allows server manager to create user ID and password, and define the authority and quota for each user. All data are well-protected and stored. |
| |
|
 |
FTP Server
It simplifies the data sharing around the world. Users can manage the access authority of the FTP server and share their files with friends or customers easily in just a few steps. |
| |
|
 |
SAMBA Server
Samba is a strong network service for file and print sharing that works on the majority of operating systems available today. When well implemented by the administrator, it's faster and more secure than the native file sharing services available on Microsoft Windows machines. |
| |
|
 |
Printer Server
Users can share printer device over the network without duplicating investment by simply connecting a USB printer and enabling its sharing function. |
| |
|
Complex Disk

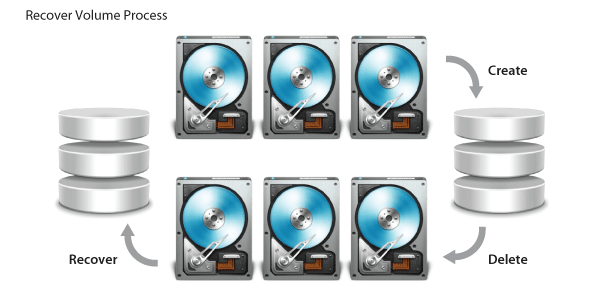

Recovery Volume
Surveillance
Support IPCAM Protocol: RTSP / HTTP
Support IPCAM: x 8 ~ x16
Support 3GPP / Mobile Phone (remote monitor)
Support Remote Monitor (real time)
Support Motion Detect
Support Quickly Video Event Search
Multi IPCAM Display (real time)

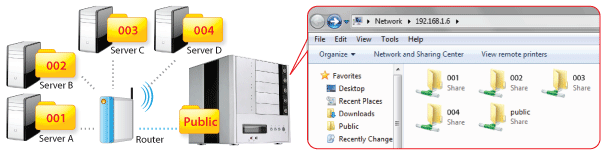

DFS
The user is able to access other share folders located on different servers from 3560. The user is only need login to 3560 and no need to memorizes other accounts and passwords.

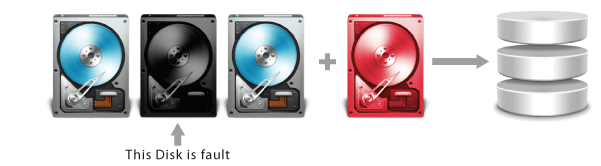

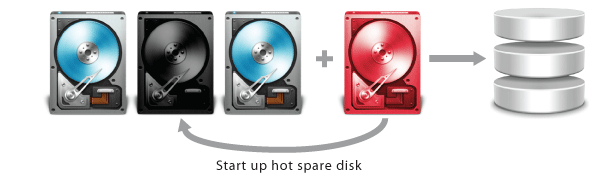

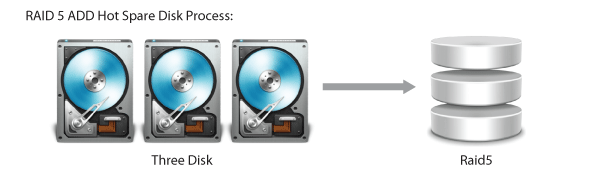

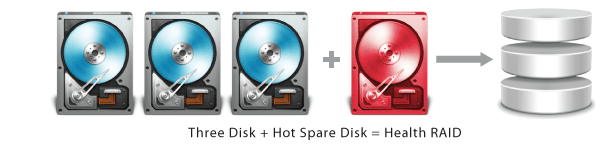

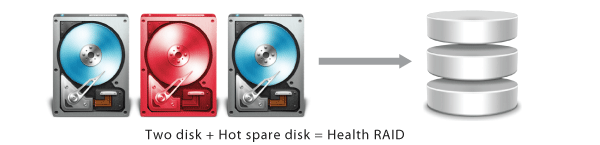

Hot Spare
Windows AD
3560 supports Windows AD to retrieve user account add password. It is easy for administrator to manage user accounts, and users only need to memorize single user name and password.
System Event Log
Event Log is for users to record important setting modify.
|
|
| |
Feature |
|
| |
* IP CAM Protocol: RTSP / HTTP
* Support IP CAM : 3Bay:32 / 5Bay:64
* Support 3GPP / Mobile Phone (Remote Monitor)
* Support Remote Monitor (Real Time)
* Support Motion Detection
* Support PTZ
* Support Quickly Video Event Search
* Real Time Multi IP CAM Display
* Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording
* Support Web-Based real time monitor and access recording file via FTP or LAN
* IP Cam Search Wizard
* Support Hard Disk Drive Hot Swap
* Support RAID 0/1/5 /6 with hot spare
|
|
| |
Applications
|
|
| |
* Windows AD
* Surveillance Station (IP Camera)
* Backup (RSYNC)
* UPS Support
|
|
| |
Specifications
|
|
| |
* Intel Atom 330: 1.6GHz / Dual Core
* 2GB DDR2 Memory
* Disk On Module: SATA DOM 512MB
* Support 3.5" SATA I/II Hard Disk Drives x3 or x5
* 10/100/1000 Gigabit Connection
* Disk Management: RAID 0/1/5 /5+ Hot Spare/6/6+Hot Spare
* Support Jumbo Frame: 9000
* USB 2.0 x 4 on back panel
* Hard Drive Power Controller
* Alarm Buzzer
* Auto Wake On
* Temperature Detection with Report
* Quiet and powerful 8 x 8 cm Fan
* Dimension (W x D x H): 3Bay: 205 x 244 x 205 (mm) /
5Bay: 205 x 250 x 205 (mm)
* Windows 98SE/NT/2000/2003/XP/Vista/7, MAC, Linux
* Support IP Cameras list :Zonet:
ZVC 7630/ZVC 7630W/ZVC 7610/ZVC 7610W
AVTECH: AVI201N/AVI203N
Zavio: F 312A /D510E/F731 |
|
| |
|
|
