Complete recording features
:Schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording |
| |
|
|
SMS
User may setup SMS service if NAS occurs any problems, the system will sent notify message to the mobile phone. |
| |
|
 |
Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market. |
| |
|
 |
Motion Detection
It provides motion detection which is a useful feature that allows you to program your network camera to begin recording, and perform other functions such as sending automated email alerts, when movement is detected within a scene. |
| |
|
 |
MJPEG/ MPEG4
It is able to captures high-quality video and enables simultaneous deliver of dual streams in mpeg-4 and MJPEG. This allows for different video resolution and quality depending on what type of device you choose to monitor the camera from. |
| |
|
 |
LCD Indicator
Through the LCD indicator, users can check or configure the IP settings, Hard Drive capacity, System temperature, Local time, and Fan's speed. |
| |
|
 |
Time Stamp
Time stamp provides a more accurate picture or video of what is actually being recorded. |
| |
|
 |
Linux Embeded
It is configured as Linux-embedded system which provides Ultra stable, reliable and high performance recording surveillance system |
| |
|
 |
RAID 0/1/5/5+/6 Supported
Enhanced RAID 0/1//5+/6 configurations to provide large storage capacity as well as secure data protection. |
| |
|
|
|
| |
|
|
| |
Specifications |
|
| |

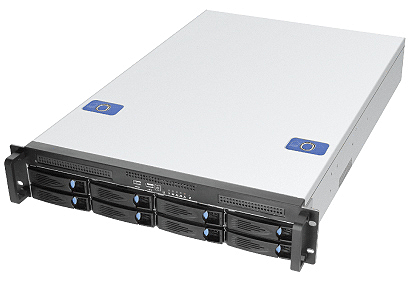

Model No. |
2U |
Chipset |
* Intel Atom 330(1.6GHz / Dual Core)
* NVIDIA ION MCP7A-ION
* Integrated Graphic in Chipset (NVIDIA GeForce 9400M) |
Interface |
USB 2.0 * 4 / VGA * 1 / DVI * 1 / HDMI * 1 |
HDD Support |
3.5” SATA I/II Drives * 4 / Raid Simple,0,1,5,5+,6,6+ |
HDD Capacity |
Max. Single Partition: 2TB / Max. Volume Capacity: 16TB |
RJ-45 Port |
10/100/1000Mbps x 1 |
Protocol Support |
Networking: TCP/IP
File Sharing: SAMBA, FTP (SSL/TLS)
Management: HTTP /HTTPS |
User Management |
Max. User Account: 3072 / Max. Group:256 /
Max. Shared Folder:256 / Max. Concurrent Connections: 256 |
Support UPnP |
uShare Server |
Support BT Download-DHT |
Yes |
HDD Hibernation |
Yes |
Email Error Notification |
Yes |
Printer Server |
Yes |
Windows ADS |
Yes |
Application |
Web Album / Surveillance Station / Streaming Server / Personal Web / Blog / Web Disk / Radio Station / Audio Station / UPS Support / RSYNC |
Operating Temperature |
0 o C to 50 o C |
Operating Humidity |
5% to 95% non-condensing |
Power Adapter |
300W |
System Requirements |
Windows NT/2000/2003/XP/Vista/7, Mac, Linux |
Instruct Light |
Blue LCD Panel |
Dimensions (mm) |
481×88×530 (mm) |
Warranty |
Standard one-year factory warranty |
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
