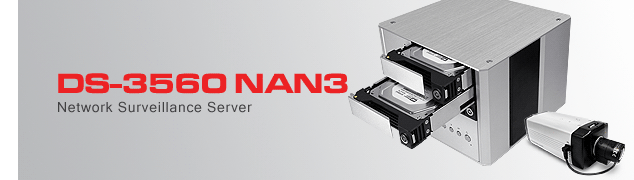

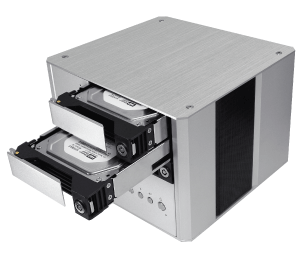

3560 Series is a 3 Bay 3.5” SATA hard disk drive surveillance system. It is based on Intel Atom 330 (1.6GHz / Dual Core) to support high performance video monitor from remote or at local. The 3560 supports 32 to 64 IP Cameras with advanced RAID protection by RAID 0/1/5 /5+ hot spare/ 6 / 6+ hot spare and the expandable capacity of RAID5/6 to supply the maximum flexibility for users to manage disk volumes.













Complete recording features
:Schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording

SMS
User may setup SMS service if NAS occurs any problems, the system will sent notify message to the mobile phone.

USB WIFI
Unlimited device setup with USB WIFI dongle Client mode. This device support WEP or WPA connection encryption to ensure your connect is in secure mode (optional).

RSS Sever
Really Simple Syndication to browse files on your smartphone; for example, a smartphone can playback MP3 via this service.

Apache Sever
Easy build your WWW website based on Linux platform, more stable, more flexible.

Mega Pixel
It has been specifically designed to effectively monitor indoor and outdoor places. The system comes with High Definition megapixel IP security Cameras featuring the highest quality of video in the market.




Motion Detection
It provides motion detection which is a useful feature that allows you to program your network camera to begin recording, and perform other functions such as sending automated email alerts, when movement is detected within a scene.

MJPEG/ MPEG4
It is able to captures high-quality video and enables simultaneous deliver of dual streams in mpeg-4 and MJPEG. This allows for different video resolution and quality depending on what type of device you choose to monitor the camera from.

LCD Indicator
Through the LCD indicator, users can check or configure the IP settings, Hard Drive capacity, System temperature, Local time, and Fan's speed.

Time Stamp
Time stamp provides a more accurate picture or video of what is actually being recorded.

Linux Embeded
It is configured as Linux-embedded system which provides Ultra stable, reliable and high performance recording surveillance system

RAID 0/ 1 Supported
Enhanced RAID 0/ 1configurations to provide large storage capacity as well as secure data protection.


  Feature


* IP CAM Protocol: RTSP / HTTP
* Support IP CAM : 3Bay:32 / 5Bay:64
* Support 3GPP / Mobile Phone (Remote Monitor)
* Support Remote Monitor (Real Time)
* Support Motion Detection
* Support PTZ
* Support Quickly Video Event Search
* Real Time Multi IP CAM Display
* Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recording
* Support Web-Based real time monitor and access recording file via FTP or LAN
* IP Cam Search Wizard
* Support Hard Disk Drive Hot Swap
* Support RAID 0/1/5 /6 with hot spare


  Applications


* Windows AD
* Surveillance Station (IP Camera)
* Backup (RSYNC)
* UPS Support


  Specifications


* Intel Atom 330: 1.6GHz / Dual Core
* 2GB DDR2 Memory
* Disk On Module: SATA DOM 512MB
* Support 3.5" SATA I/II Hard Disk Drives x3 or x5
* 10/100/1000 Gigabit Connection
* Disk Management: RAID 0/1/5 /5+ Hot Spare/6/6+Hot Spare
* Support Jumbo Frame: 9000

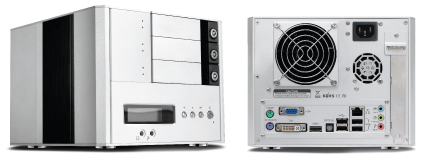

* USB 2.0 x 4 on back panel
* Hard Drive Power Controller
* Alarm Buzzer
* Auto Wake On
* Temperature Detection with Report
* Quiet and powerful 8 x 8 cm Fan
* Dimension (W x D x H): 3Bay: 205 x 244 x 205 (mm) /
            5Bay: 205 x 250 x 205 (mm)
* Windows 98SE/NT/2000/2003/XP/Vista/7, MAC, Linux
* Support IP Cameras list :Zonet:
 ZVC 7630/ZVC 7630W/ZVC 7610/ZVC 7610W
 AVTECH: AVI201N/AVI203N
 Zavio: F 312A /D510E/F731
